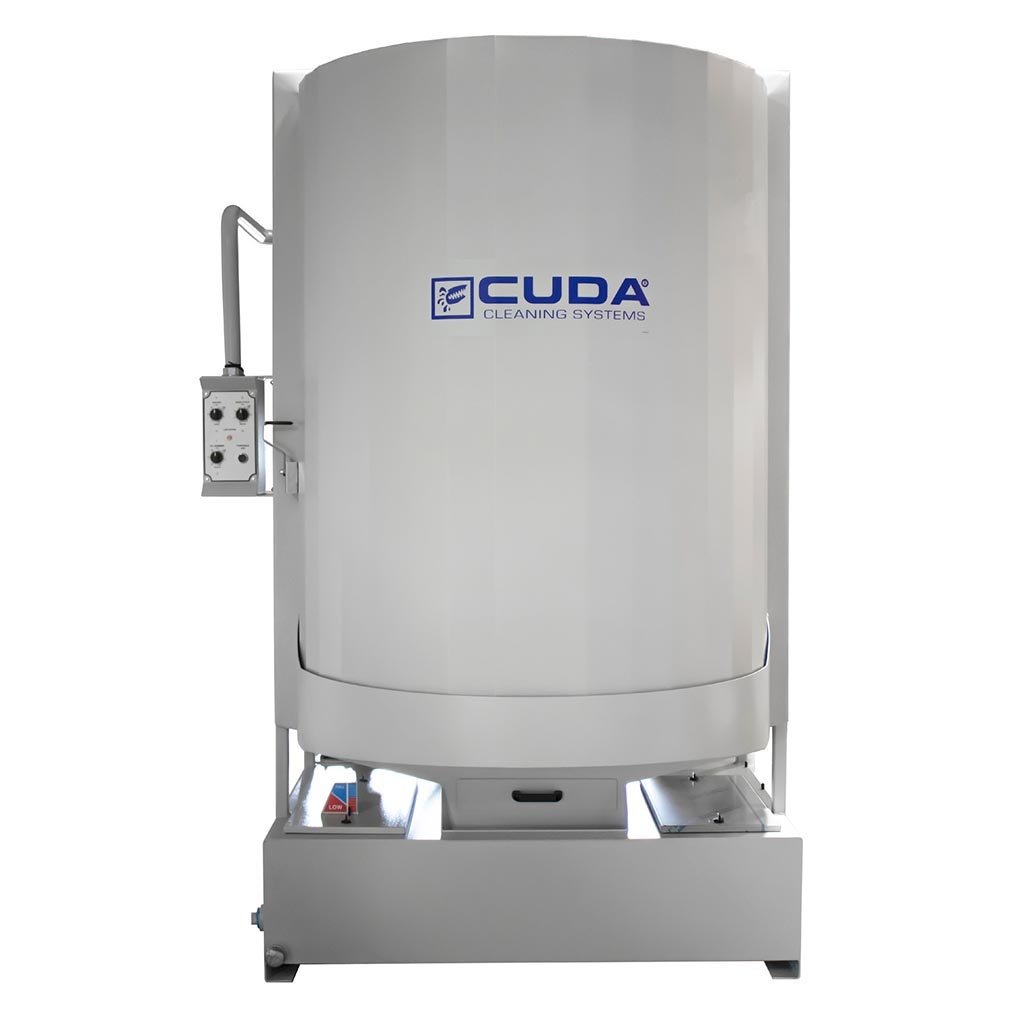

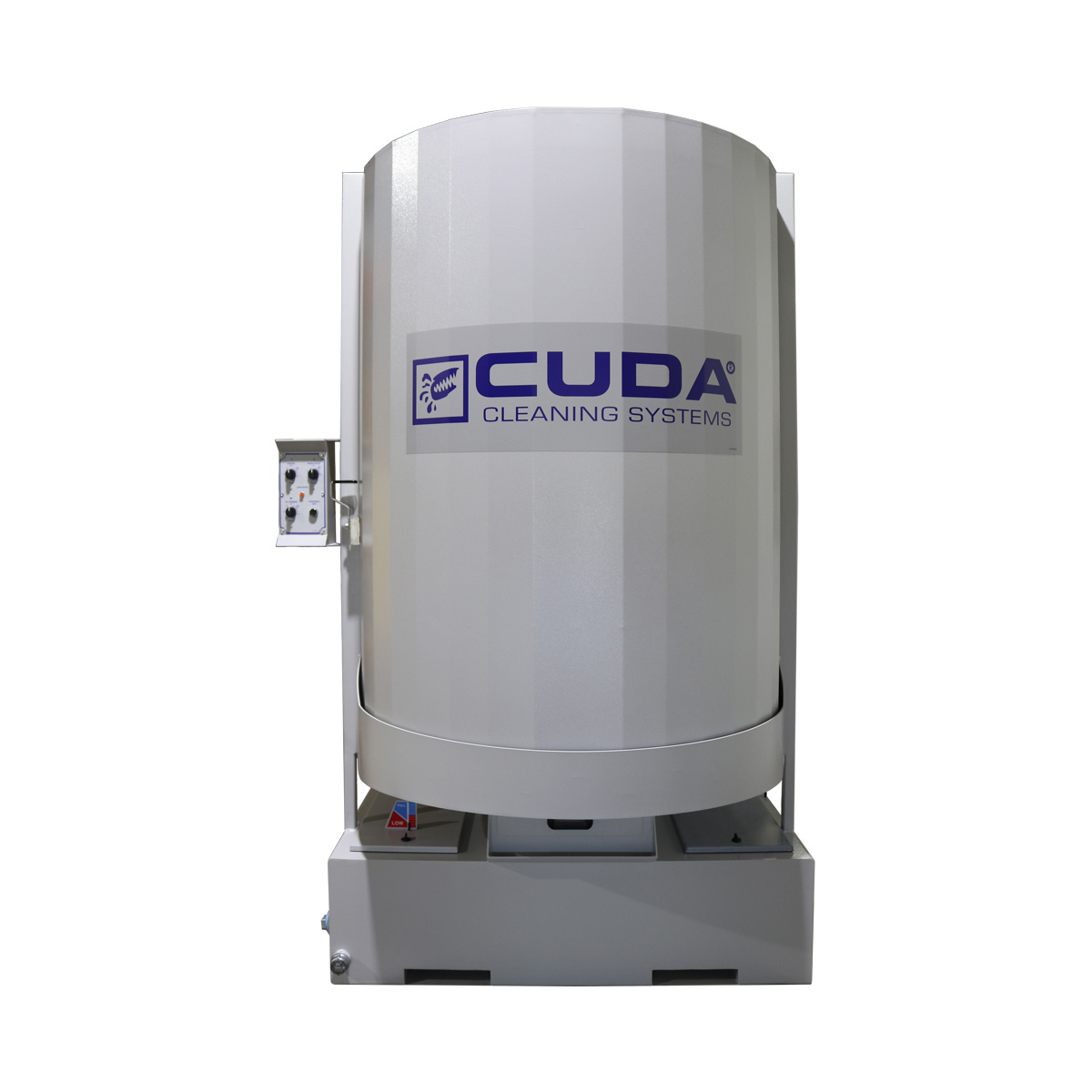

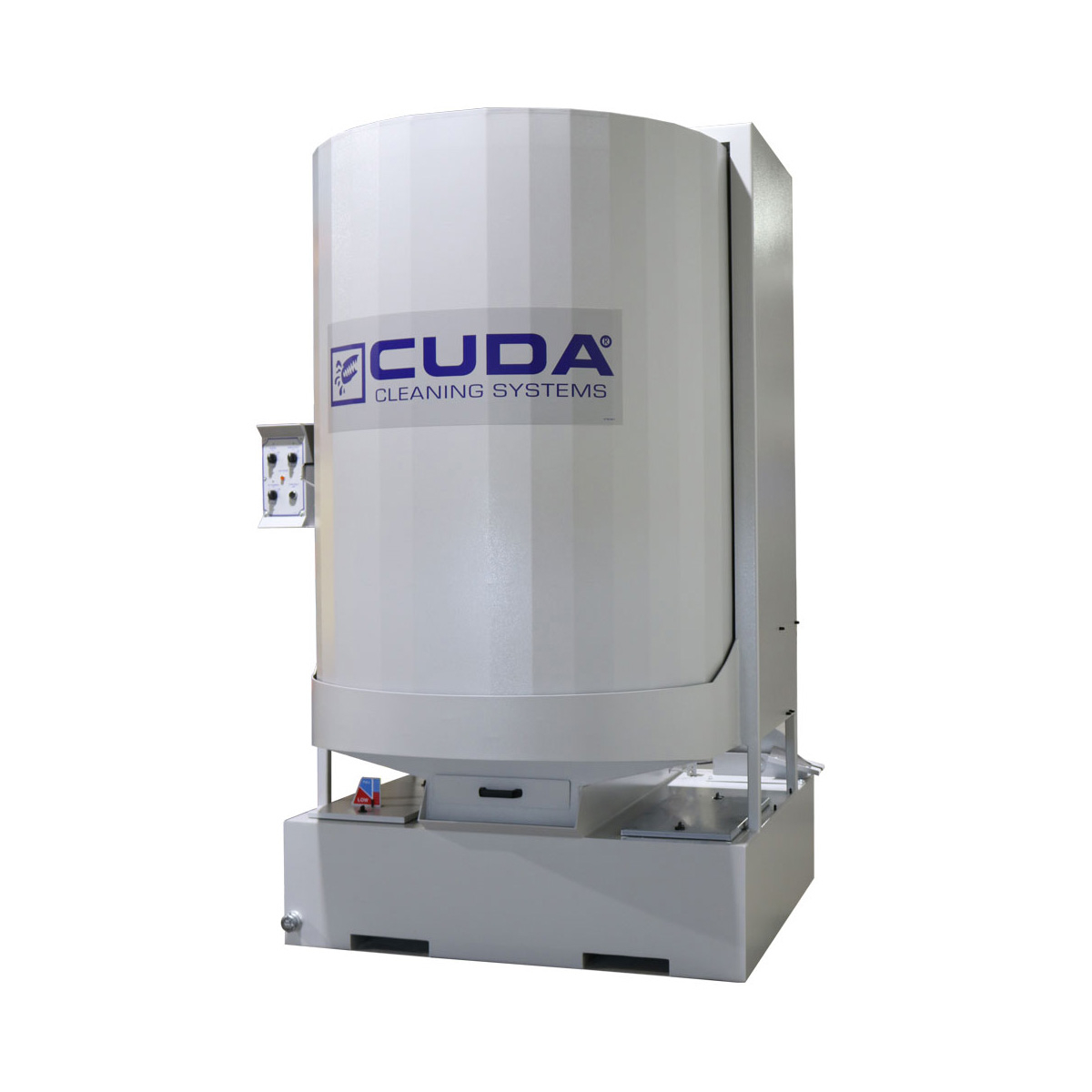

The Cuda 4860 is the work horse for heavy duty engine and transmission rebuilders, and features a turntable diameter of 48 inches, working height of 60 inches, and load capacity of 5000 lbs. The 4860 Series is equipped with a 7.5 HP (10 HP pump option available) vertical seal-less pump producing 200 GPM at 50 PSI, and has a 156-gallon sump capacity.
Ideal For:
- Large OTR truck and diesel repair facilities and dealers
- Large implement dealers
- Construction equipment repair
- Large Engine rebuilders
Models
| Model |
Part No |
Working Height |
Turntable Diameter |
Volt/PH |
Total Amps |
| Standard Models |
| 4860 |
1.043-444.0 |
60″ |
48″ |
230/3 |
55 |
| 4860 |
1.043-519.0 |
60″ |
48″ |
208/3 |
60 |
| 4860 |
1.043-445.0 |
60″ |
48″ |
460/3 |
32 |
| 4860 |
1.043-446.0 |
60″ |
48″ |
575/3 |
26 |

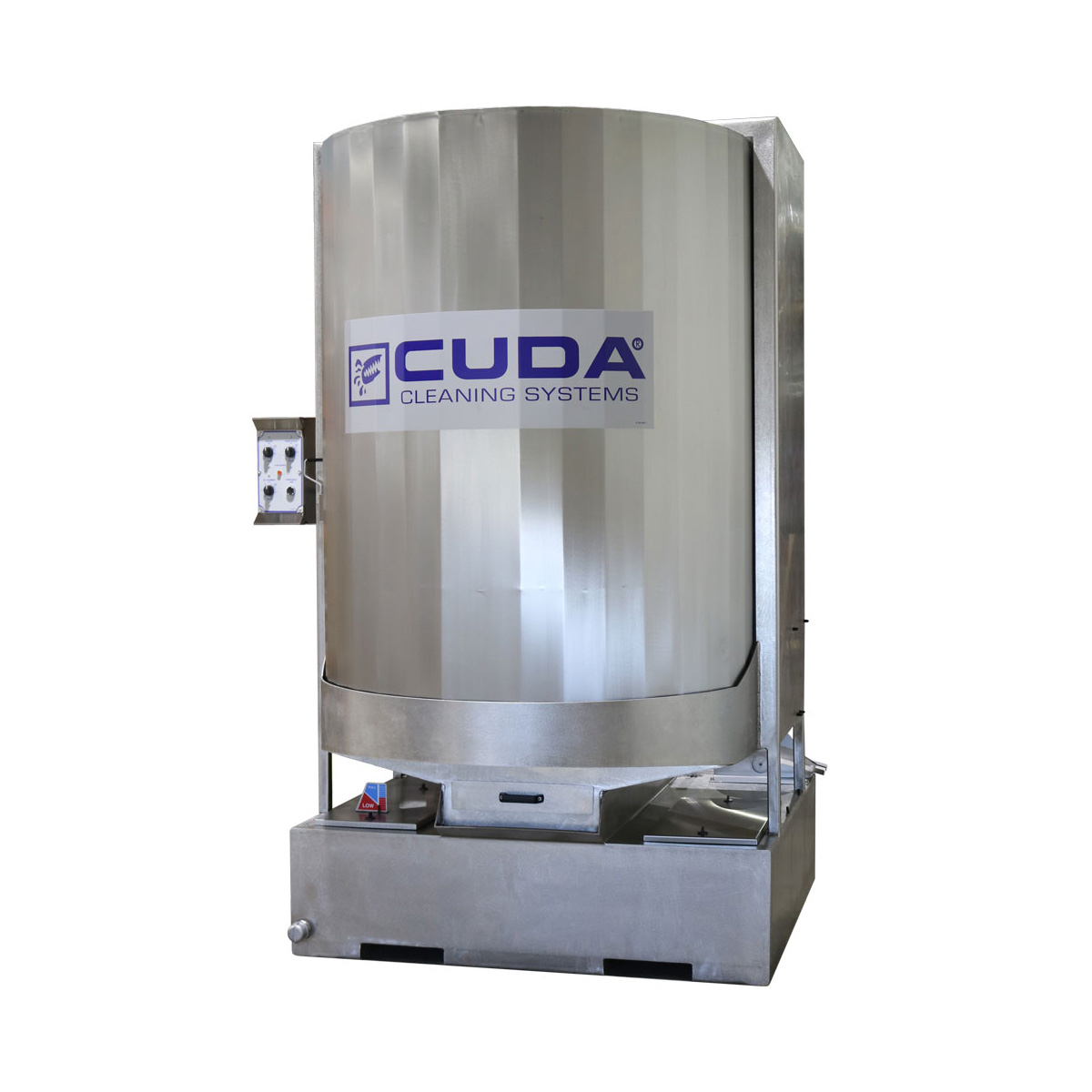

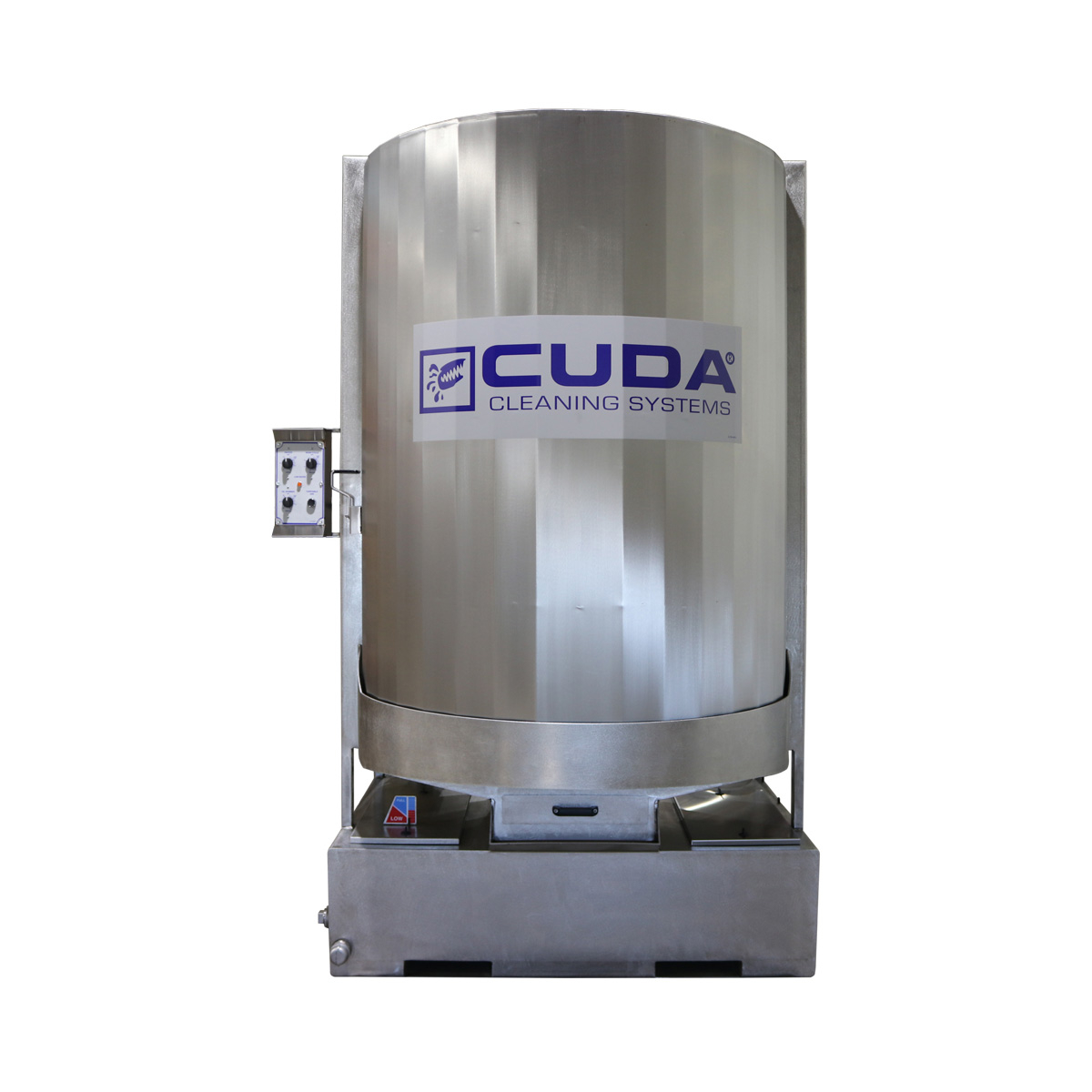

| Stainless Steel Models |
| 4860 |
1.043-510.0 |
60″ |
48″ |
230/3 |
55 |
| 4860 |
1.043-520.0 |
60″ |
48″ |
208/3 |
60 |
| 4860 |
1.043-511.0 |
60″ |
48″ |
460/3 |
32 |
| 4860 |
1.043-512.0 |
60″ |
48″ |
575/3 |
26 |
NOTE: All stainless steel models come with standard cast pump. All wetted surfaces are stainless steel.
Options
| Part No |
Description |
|
| 8.916-220.0 |
Preferred Options Package – Contains Parts Tree, Small Parts Basket, Containment Ring, Oil-Drain Container |
■ |
| 8.749-394.0 |
Automatic Water Fill |
□ |
| 8.749-392.0 |
48″ Containment Ring |
□ |
| 8.916-341.0 |
2 Stage Filtration |
□ |
| 8.916-342.0 |
2 Stage Filtration & Sump Sweep |
□ |
| 8.916-365.0 |
12″ Height Extension |
□ |
| 8.749-395.0 |
60 Mesh Insert for Debris Screen Tray |
□ |
| 8.749-396.0 |
4 Hook Parts Tree |
□ |
| 8.749-492.0 |
Two-Tier Turntable* |
□ |
| 8.749-397.0 |
Deluxe Kit: Detail and Power Brush with Side Sink |
□ |
| 8.725-267.0 |
Heater Timer, 24 hour 7 day |
□ |
| 8.725-268.0 |
Heater & Skimmer Timer, 24 hour 7 day |
□ |
| 8.924-172.0 |
Oil Drain Container |
□ |
| 9.802-283.0 |
Hour Meter |
□ |
| 8.731-254.0 |
Light Duty Small Parts Basket (8″ x 8″ x 4″) |
□ |
| 8.753-825.0 |
Light Duty Medium Parts Basket (16″ x 12″ x 6″) |
□ |
| 8.753-826.0 |
Medium Duty Parts Basket (18″ x 16″ x 8″) |
□ |
| 8.723-214.0 |
Gray Spray Pain (cannot ship via air) |
□ |
| Stainless Optional Accessories |
| |
Stainless Two-Tier Turntable |
□ |
| |
Stainless Parts Tree |
□ |
| |
Stainless Containment Ring |
□ |
| |
Stainless Pump Motor |
□ |
| |
Stainless Oil Bucket |
□ |
| |
Stainless Steel Handle Kit, assembled |
|
■ Included □ Optional
* Required Light Duty Small Parts Basket and Containment Ring (sold separately). Not for height extended machines.
